RTV-MC | Mini Castellated Roof Tile Vent (With Adapter)

Uses:

Available in single, box and pallet quantities.

Includes a pipe adapter for a 100mm ducting connection.

Uses

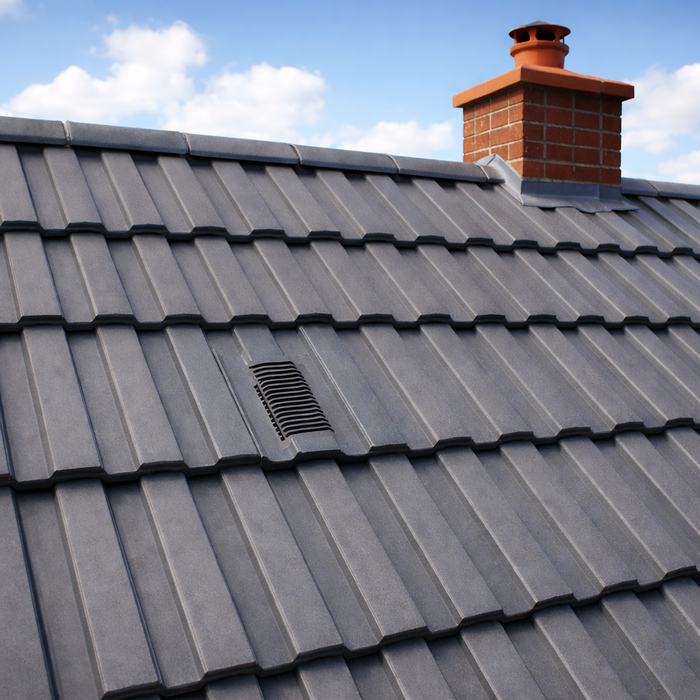

• On roofs with Mini Castellated roof tiles

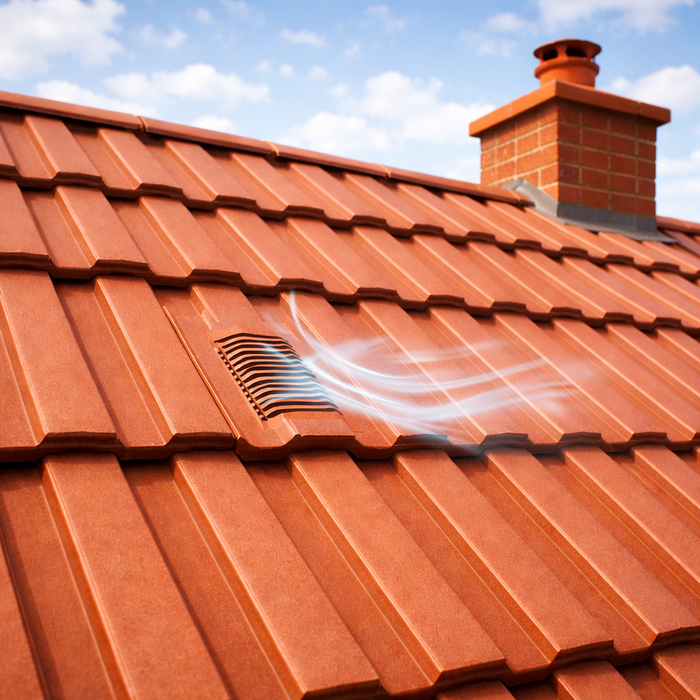

• Enables ventilation directly into a roof space

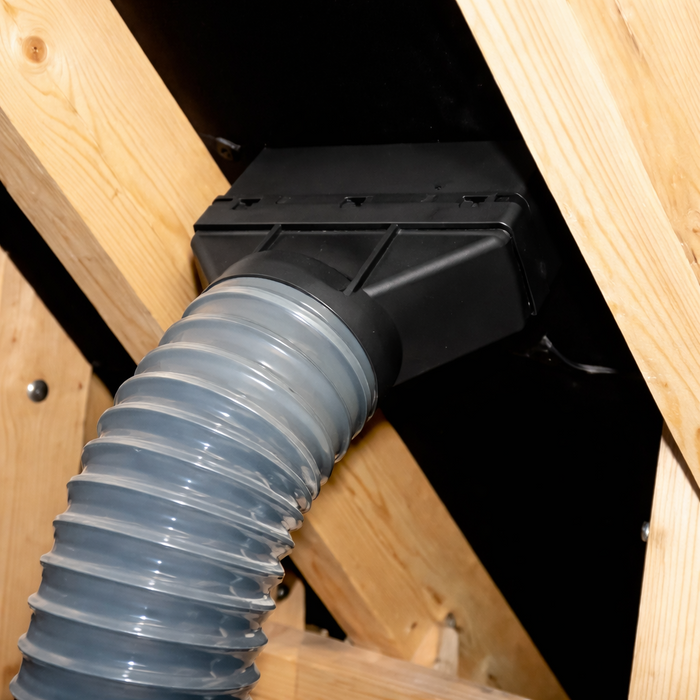

• Can also be connected to a ducted ventilation system inside the building

Features & Benefits

• Suitable for roofs with a minimum pitch of 17.5°
• Free ventilation area of 5,000mm2
• Sized to replace one Mini Castellated tile to provide a continuous visual appearance along the roof when viewed at all levels
• Provides a 110mm duct connection as standard
• Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening
• 4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris
• Integrated clips to ensure a secure fit to surrounding roof tiles
• UV stabilised top for continuous exposure to sunlight
• Lightweight and easy to handle

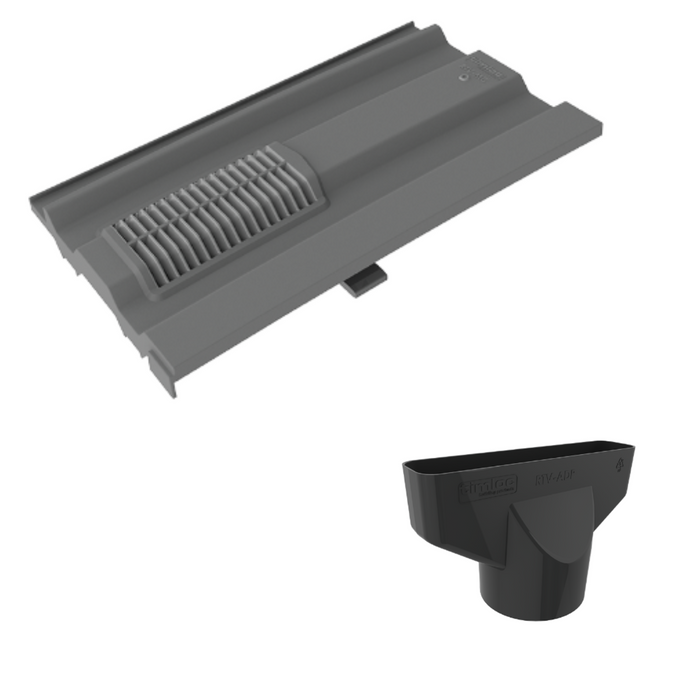

Adapter information

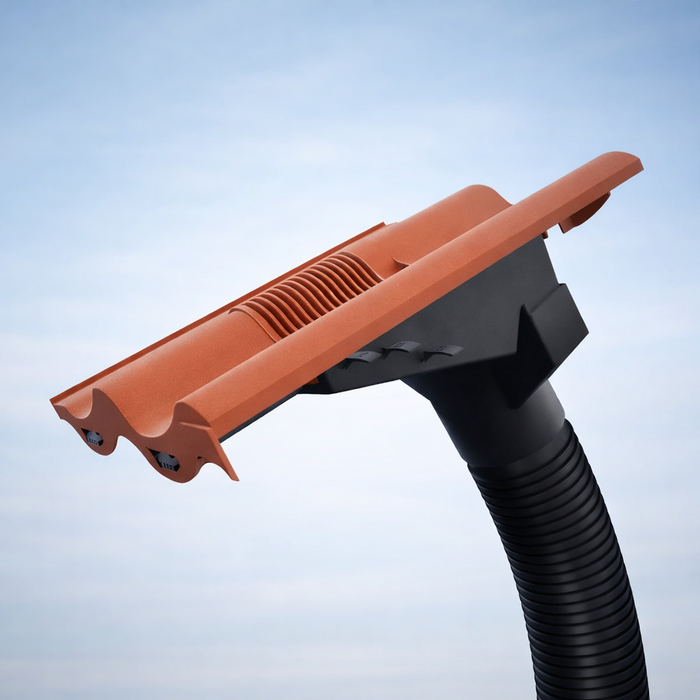

• Fits to the lower section allowing a 100mm ducting pipe to be fitted (flexible PVC or rigid pipe).
• Complies fully with relevant Building Regulations and British standards.
• Can be used to channel air in specific areas of the floor void, through dividing walls, floor slabs, etc.
• Telescopic vents and air bricks available.
• Other adaptors and fittings for this product available in our shop.
• Ducting size: 100mm
• Rectangular size: 50mm x 215mm
