Brick Weep Vents Wall Ventilation

by Bond-It
Original price £5.69 - Original price £33.24
Original price
£5.69 - £33.24
Current price £5.69

Product Description

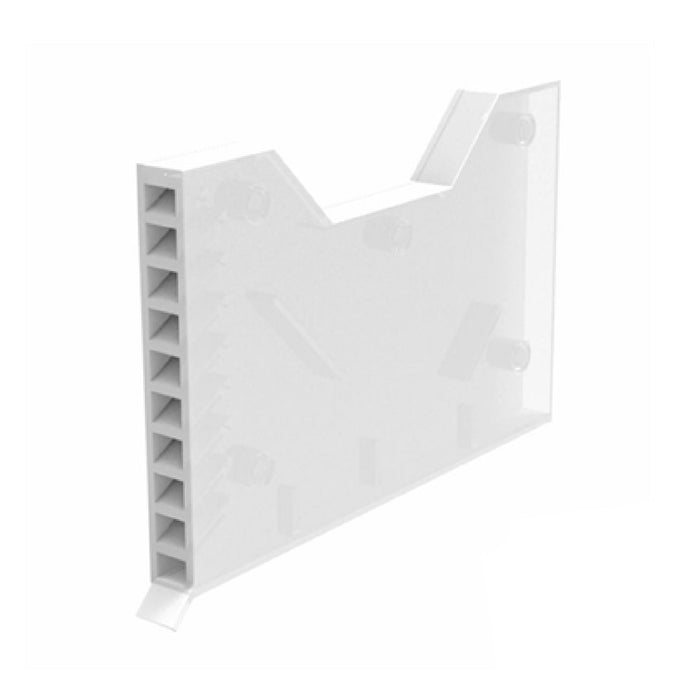

Manthorpe Weep Vents


Available in a range of colours

Used for discharging water from external walls of lintels

Designed to fit in with blue engineering bricks

British Made

Suitable for commercial and domestic use.

Satisfies NHBC Standards

Manufactured to BS EN ISO 9001

Dimensions 100mm x 64mm x 10mm



The product can be slotted between two bricks and mortared into position. It provides an unobtrusive ventilation point for the cavity behind. The vent has a baffled grille to prevent the ingress of driving rain and wind whilst incorporating an insect grille and drip lip.This grille is sized to keep out large insects but is wide enough that it will not be blocked by debris, paint or water droplets.



Technical specification

Any situation where water must be discharged from an external wall.Ventilating cavity voidsAt ground floor slab levelWithin cavity tray systemsOver external lintelsWhere a cavity must be ventilatedOn external walls - 100mm or more in thickness - built from brick, block or stone.



Features & benefits

Purpose made and pre-formed to guarantee reliable discharge of waterFree vent area 165mm2




Satisfies all NHBC Standards 2008 EditionManufactured to BS EN ISO 9001 : 2008Complies with all relevant Building RegulationsMeets all relevant British Standards



Material & colour choice

injection moulded in UV stabilised polypropylene
