Access Panel Inspection Hatch Gas Safe Key Lock

Product Description

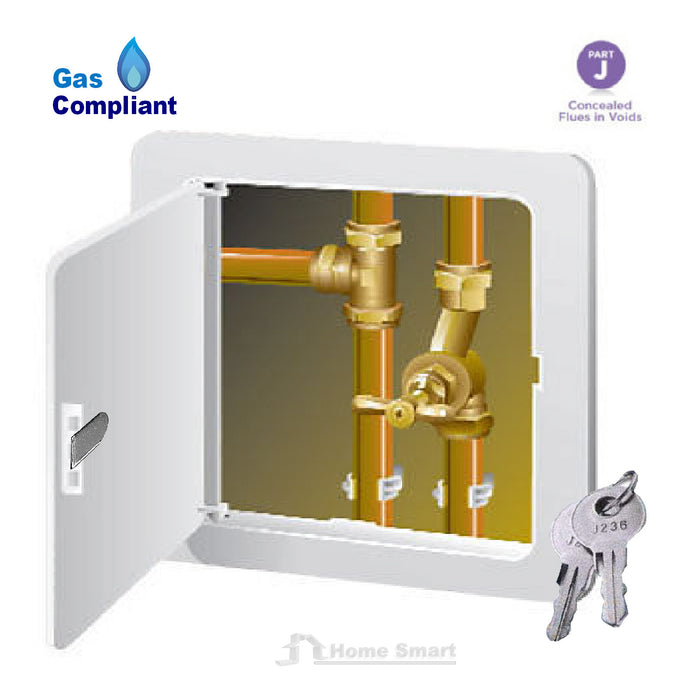

Access Panel Hinged Inspection Hatch White Key Lock

Different sizes in drop down menu

Simply effective way to gain access to concealed plumbing, valves, stopcocks, switches, valves, Flues controls and connections.

Made to save time and money compared to traditional joiner-made or steel access doors.

Access door is hinged or push fit with a push latch

Meets gas safety for concealed boiler flue inspection requirements

non-fire rated applications

Dimension Specification

Aperture required 155mm x 235mm

Overall Dimension 200mm x 280mm   Hinged Door

Aperture required 305mm x 305mm

Overall Dimension 345mm x 345mm   Hinged Door

Aperture required 470mm x 470mm

Overall Dimension 512mm x 512mm   Hinged Door

Use

• Timloc access panels are designed to provide simple, easy access through dry lined walls, ceilings, ducts and units to gain access to concealed plumbing, switches, valves, stopcocks, fuse boxes, controls and connections

Features & benefits

• Purpose made access panels save time and money compared to traditional joiner-made or steel access doors
• Excellent aesthetic appearance
• Factory finished and simple to fit
• Fully removable panel for easier access
• Textured finish allows painting
• Key lock version available

Quality

• Manufactured to BS EN ISO 9001 : 2008

Material & colour choice

• The door and frame are injection moulded in high impact polymer
• Available in white (textured surface allows painting)
• Colour options are available on request
• Slight colour variation may occur between size and batch
