9" x 6" Extendable Cavity Wall Sleeve Air Brick Ventilator

by Timloc
Original price £10.44 - Original price £19.99
Original price
£10.44
£10.44 - £19.99
Current price £10.44

Product Description

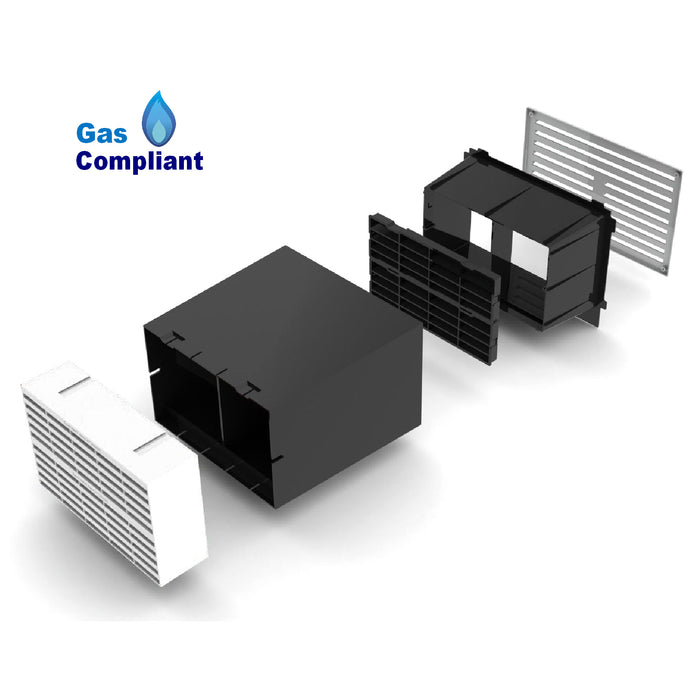

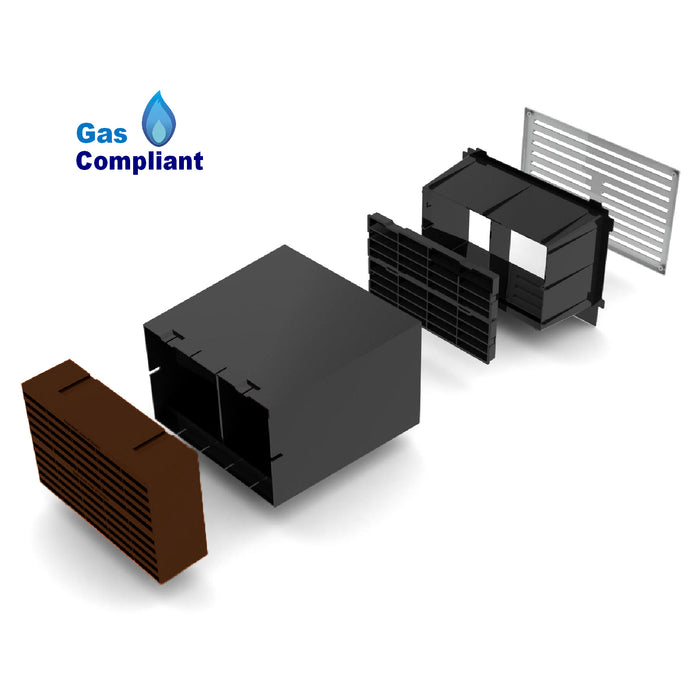

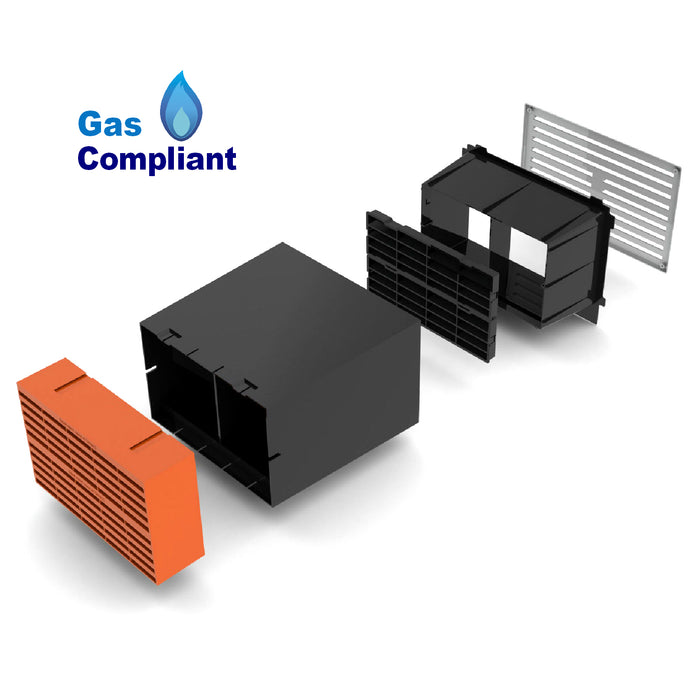

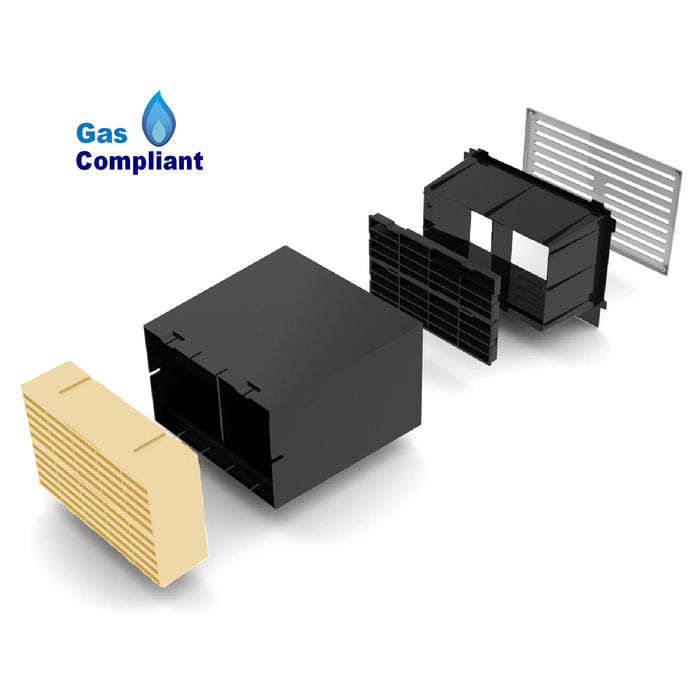

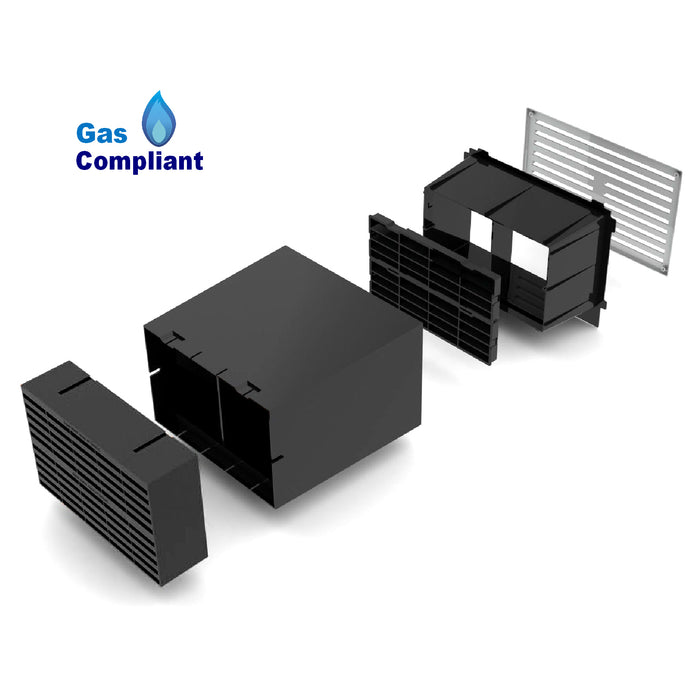

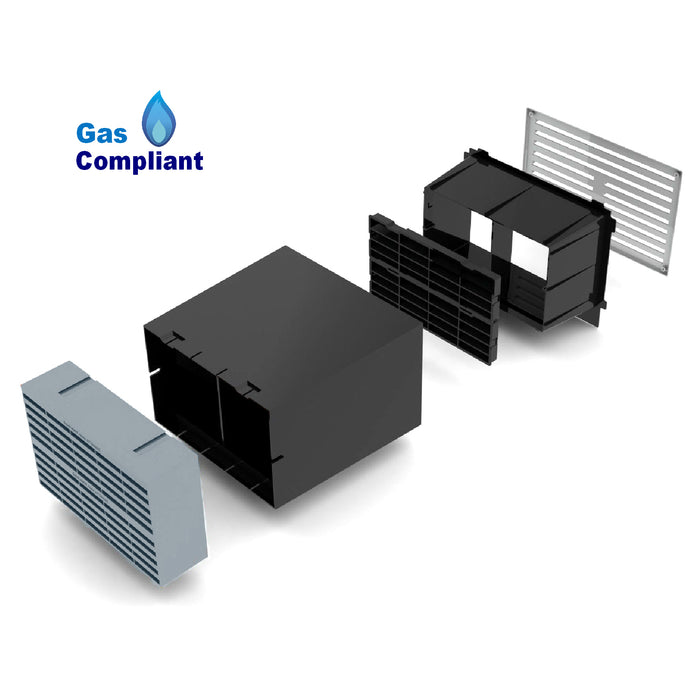

Extendable Cavity Sleeve Airbrick Vent


Menu Options
9 x 6 Inch



This vent is to increase the airflow in a room to eliminate condensation with this

Sleeve vent for heat producing appliances.

Extends to suit wall thickness of 260mm - 360mm.

Extension sleeves available.

Ventilation for heating and gas appliances.

9" x 6" louvre vent for internally and air brick for externally.

Aesthetically pleasing and simple to install modular system.

Meets requirements for British Gas.

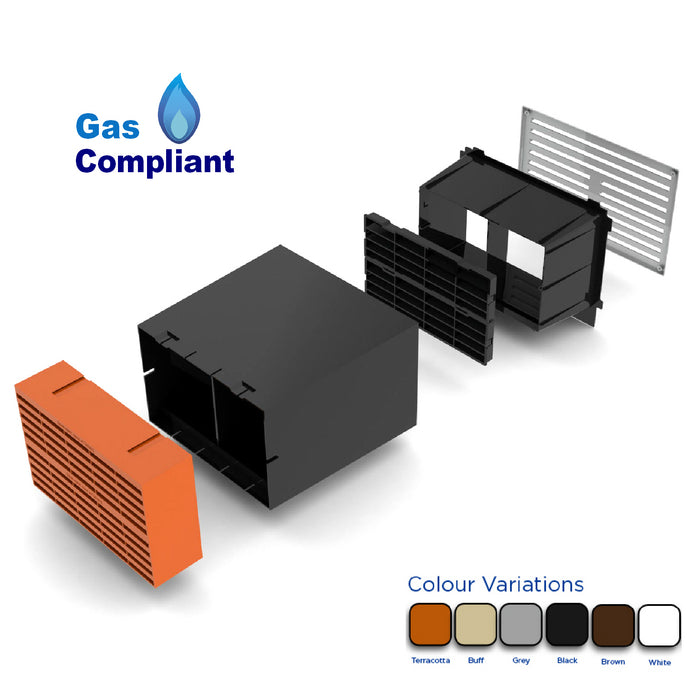

Different colour cowls and adaptors available in our shop.

Provides an equivalent area of 10800mm² and each unit is suitable for venting appliances up to 28.7kW (98,000Btu) rated input.



Use

To provide ventilation for heat producing appliances
To provide background room ventilation
Individual ventilation sets can supply up to maximum appliance rated input of 29kW (99,000 Btu/h)

Features & benefits

Aesthetically pleasing and a simple to install modular system
Excellent airflow properties
Independently tested by BRE
Offers reduction of draughts and light compared to basic through wall ventilation
Internal finish with open louvre grille (options with Hit & Miss available to special request, but not suitable for heat producing appliances.

Quality

Equivalent area tested to BS EN13141-1:2004
Compliant with BS 5440-2:2000, BS 5871-3:2005 & BS 493:1995
Complies with Building Regulation 2000 Approved Documents F (2004 edition) & J (2002 edition)
Manufactured to BS EN ISO 9001:2008
Meets the requirements of British Gas
Satisfies NHBC Standards 2008
